IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing

Guangzhou Yuexin Test Equipment Co., Ltd.
Contact Now

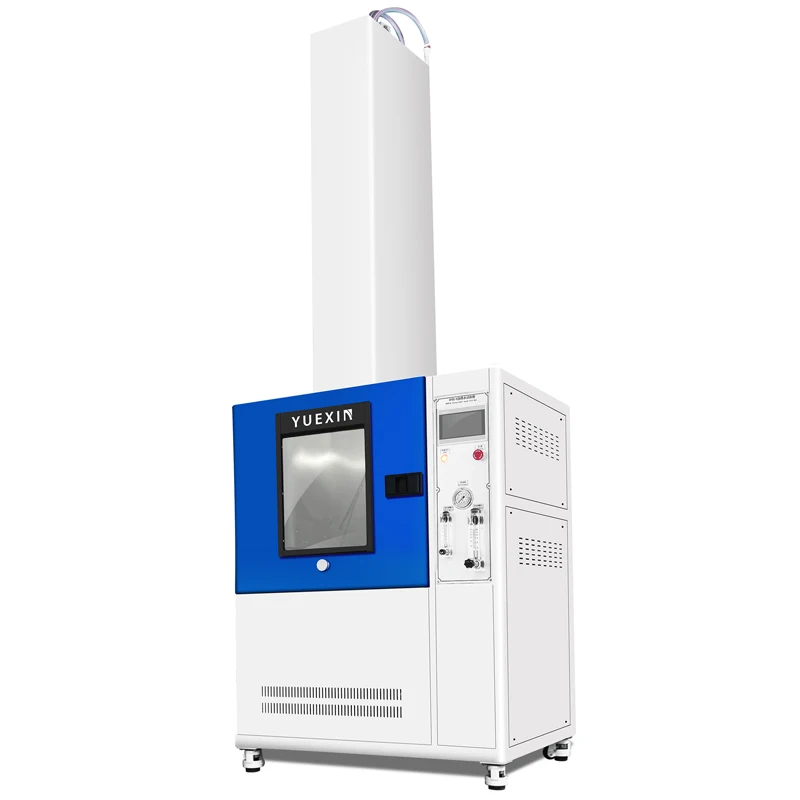

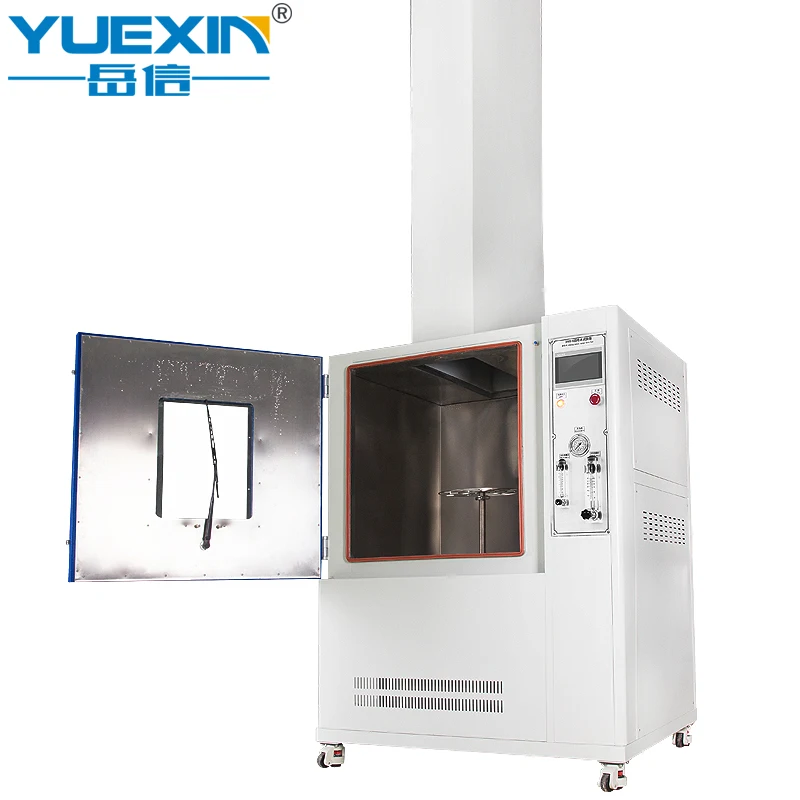

IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing

Brand Name : YUEXIN

Place of Origin : Guangdong, China

Model Number : YX-IPX56KBDSE-700L

MOQ : 1

Price : $33,900-39,900

Power : 2500W

Power supply : AC380V 50HZ

Weight : 500kg

Control : 7 Inch Touch Screen

Inner Size : L900*D900*H900mm

External dimensions : L1540*D1020*H3820mm

Turntable diameter : 600mm

Nozzle diameter : 6.3mm(IPX5/IPX6K);12.5mm(IPX6)

Water Flow : 12.5±0.625L/min(IPX5);100.0±12.5L/min(IPX6);75.0±3.75L/min(IPX6K)

Flow control : Automatic adjustment (Flow sensor)

Water spraying distance : Approximately 2.7 meters

Turn table load : 50KG

Water spray height : 0-800mm

Test time : 0-999min

Voltage : 380V

Contact Now

Product Description
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
Product characteristics
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing

Two spray modes.

up and down sweeping water spray and fixed water spray.
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing

Controller.

7-inch touch screen + PLC, using Yuexin self-developed software, which can be switched to multiple languages
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing

Water storage tank.

There is a water storage tank inside the equipment and a water level control system. When the water is full, it will prompt, and when it is short of water, it will alarm.
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing

Sample power outlet.

The sample power socket (220V, 10A) is mounted on the right wall of the inner box, which is convenient for the user to do the live test of the sample; and after the sample is powered on, the turntable rotation will be automatically adjusted to forward and reverse rotation to prevent winding
Specification
Equipment function:
The main function of this device is to test the physical and other related performance of electronic and electrical products, lamps, cabinets, electrical components, cars, motorcycles, and their components under simulated water spray climate conditions. After testing, determine whether the product's performance meets the requirements through verification, in order to facilitate the design, improvement, verification, and factory inspection of the product.
Model
YX-IPX56KBDSE-700L
Inner Size
L900*D900*H900mm
External dimensions
L1540*D1020*H3820mm
Turntable diameter
600mm
Nozzle diameter
6.3mm(IPX5/IPX6K);12.5mm(IPX6)
Water Flow
12.5±0.625L/min(IPX5);100.0±12.5L/min(IPX6);75.0±3.75L/min(IPX6K)
Flow control method
Automatic adjustment (Flow sensor)
Water spraying distance
Approximately 2.7 meters (distance from nozzle to center of turntable)
Fixing method of spray gun
Mechanical fixation (program setting, adjusting spray gun angle)
Turn table load bearing
50KG
Turn table lifting height
Non lifting (fixed)
Water spray height
0-800mm
Test time
0-999min
Protection device
Leakage, water shortage, short circuit
Voltage(V)
380V
Power(KW)
2.0KW
Standard
IEC60529:1989+A1:2013,ISO20653,IEC60598,DIN40050
Company Profile
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing

Guangzhou Yuexin Test Equipment Co., LTD., established in 2013, covers an area of 2350 square meters and employs approximately 50 people.
We have rich experience in the test equipment industry. In the last decade, we are delicated to provide IP waterproof testing, IP dustproof testing and other environmental testing equipments.
We are a manufactuer with a professional R&D team,which enables us to customize the product as per requirements.
We have a excellent after-sales service team that can respond and provide solutions quickly.
We are the nominated supplier of BYD, DJI, CATL and other companies, and our products are sold worldwide.
We have been granted 25 patents and passed the Quality management system:ISO9001.
We enjoy a reliable reputation among customers with professional service, quality products and competitive prices.
The main products are IPX1/2 dripping test chamber, IPX3/4 rain test chamber, IPX5/6 water spray test chamber, IPX7/8 immersion testing machine, IPX9K high pressure spray test chamber and IP5/6X dustproof test chamber, etc.
Warmly welcome you to visit our factory!
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
IP65 Water Resistance and IP66 Rain Test Chamber with 7 Inch Touch Screen for Waterproof Performance Testing
FAQ
1. Are you manufacturer? Do you offer after-sales service? How can i ask for that?
Yes, We are one of the professional manufacturers of waterproof and dustproof test equipment in China. Every machines purchasing from our factory has 12 months warranty after shipment. Generally, we offer 12 months for the FREE maintenance. while considering of sea transportation,we can extend 2 months for our customers.In the period of warranty,we may offering the parts replacements,repairing and technique support,necessaryly,our engineer may go to the local country to service.
If your machine doesn’t work, you can send us an E-mail or call us we will try our best to find the problem through our
conversation or by video chat if neccesary. Once we have confirmed the problem, the solution will be offered within 24 to 48hours.


2. What's the delivery term ?
For our standard machine which means normal machines, we have stock in the warehouse. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt ( this is only for our standard machines) If you are in urgent need, we will making a special arrangement for you.

3.Do you accept customization service? Can i have the LOGO on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.

4. How can i install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation video in English version through Email. Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use. And if it's necessary, we can also assist you to install your machine on site.

5. what languages are supported?
The factory standard equipment supports bilingual Chinese and English.
Other languages can be customized according to the needs of users.
